Shut-off valves

Catalog

TU 3742-001-71634056-2010

DN 15, 20, 25

PN 1,6; 2,5; 4,0; 6,3; 10,0; 16.0; 20,0; 25,0; 27,0 MPa

RTKZ – steel shut-off valves.

Designed for installation on pipelines as a shut-off device.

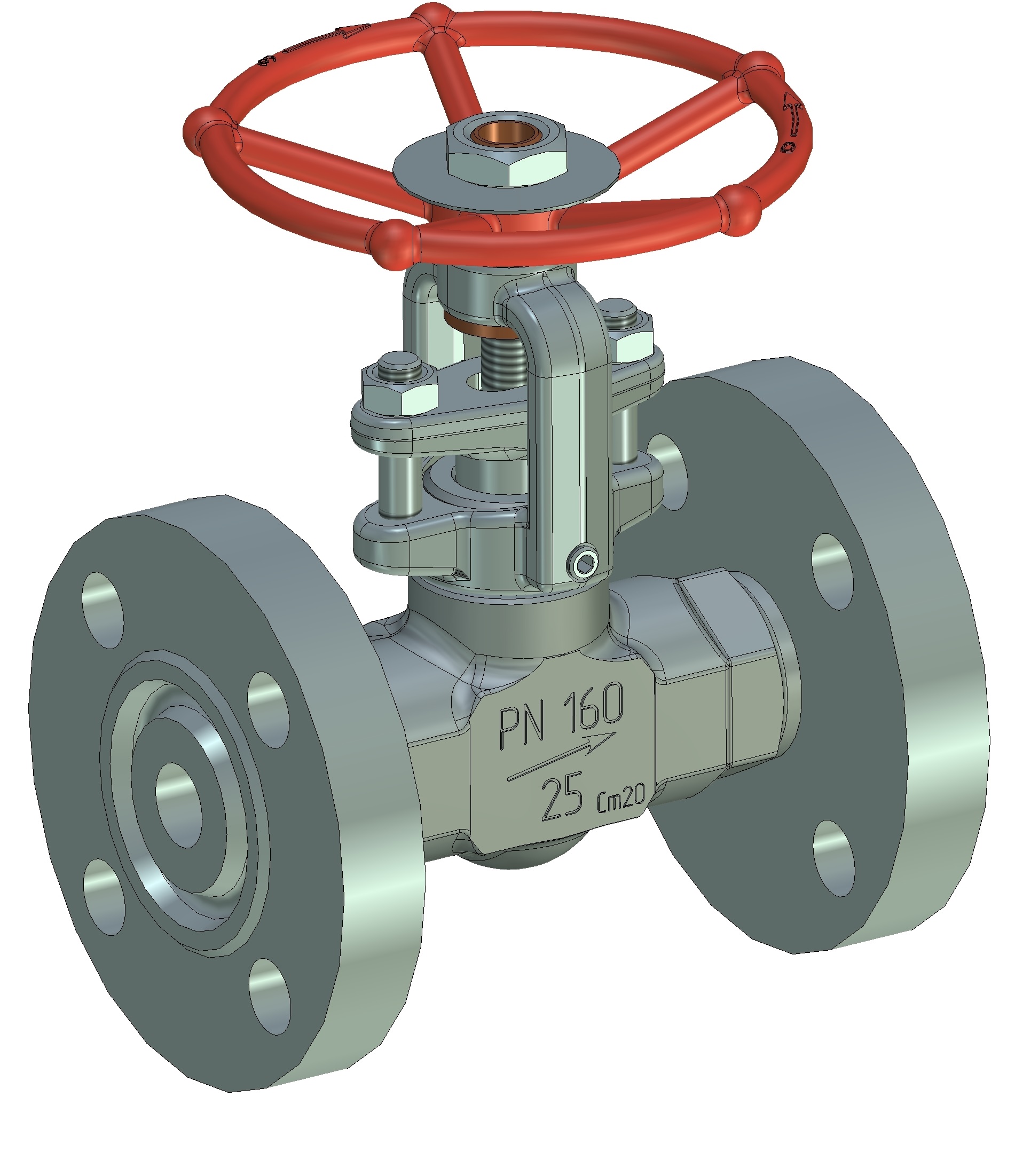

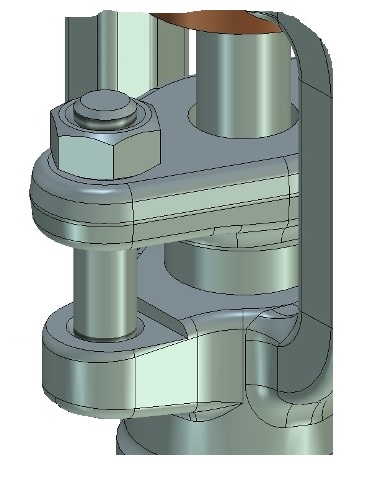

RTKZ10 is a series of shut–off valves with forged-welded housings, mounting the oil seal on studs.

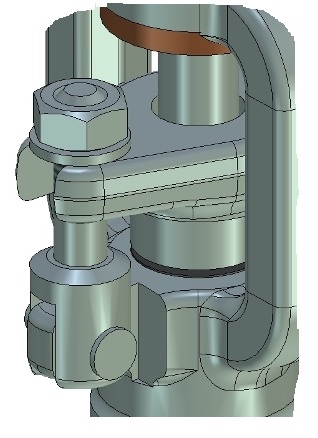

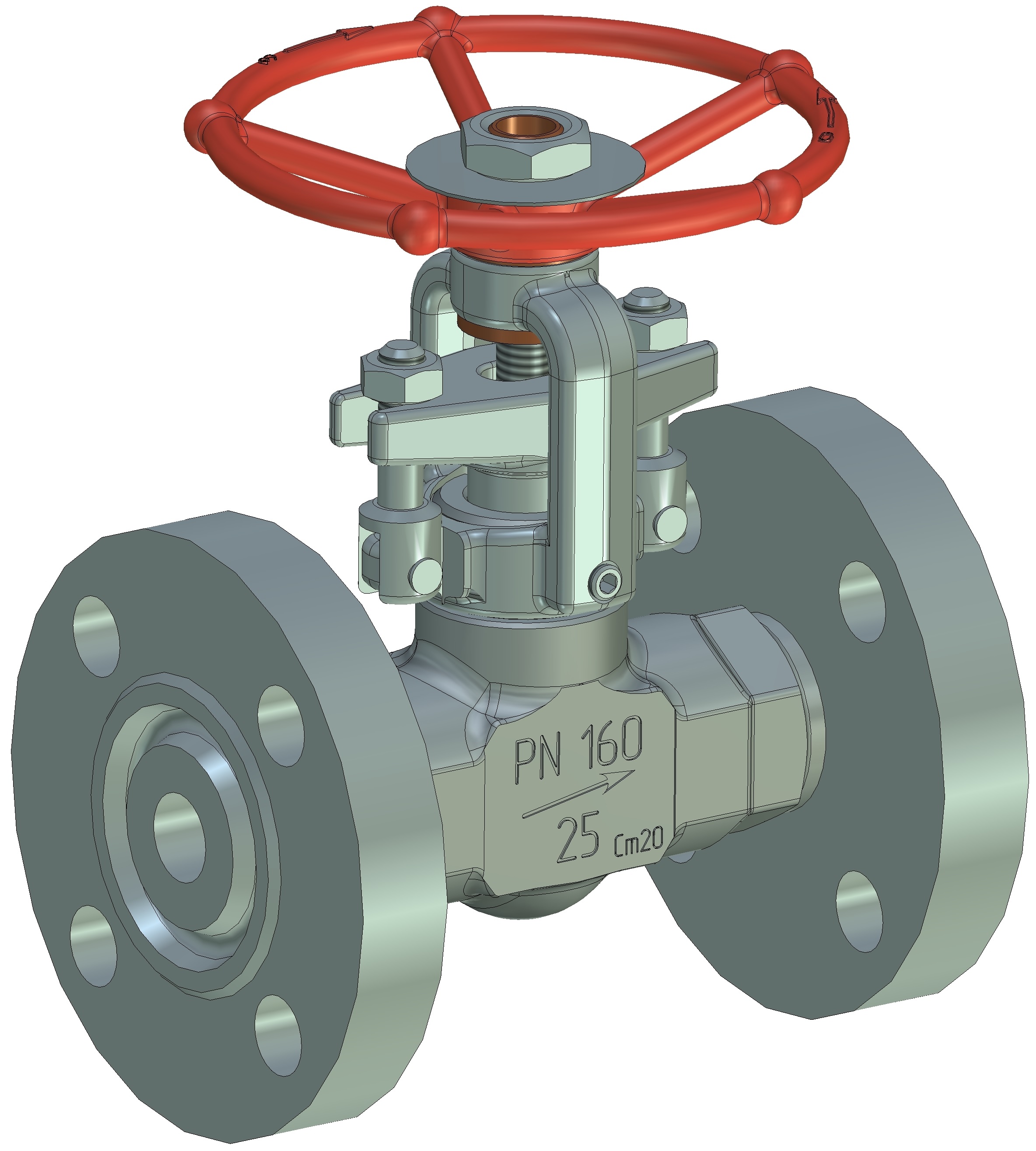

RTKZ14 is a series of shut–off valves with forged-welded housings, mounting the stuffing box on folding bolts.

Advantages:

The sealing surfaces of the gate are made of wear-resistant and corrosion-resistant materials of high hardness.
The housing is made of a stamped blank, has a high margin of safety, the stuffing box is located directly in the housing, there is no lid, which simplifies the design and increases the reliability of the valve.
Gate control is possible with a complete pressure drop, with little control effort. At the same time, a consistently high tightness of the gate according to class "A" is ensured.
It is possible to manufacture valves with non-standard and increased construction length.

Technical characteristics of RTKZ10 RTKZ14 valves:

Indicator	Meaning	Note
Appointment	For installation on pipelines as shut-off devices
Standard for manufacturing	TU 3742-001-71634056-2010
Type of reinforcement	Shut - off
Type of reinforcement	Shut-off valves RTKZ	RTKZ10, RTKZ14
Sealing class of the shutter	class "A" GOST 9544-2015
Conducted environment	Water, steam, oil, liquid and gaseous petroleum products, water-gas-oil mixtures, natural and associated gas, including those containing hydrogen sulfide, other media in relation to which the material of the valve parts is corrosion-resistant	Specified when ordering. For corrosive media, the concentration of active substances is indicated.
Temperature of the conducted medium	from minus 60 ° C to 560 °C, depends on the material of the valve parts	Specified when ordering, In the absence of requirements, it is delivered according to the technical documentation of RTMT LLC
Climatic version	U1, HL1, UHL1, T1 GOST 15150. Other types of climatic versions and accommodation categories are allowed.	Specified when ordering
Category of earthquake resistance	non-earthquake-resistant design with (up to 6 points inclusive on the MSK-64 scale); earthquake-resistant design With (over 6 to 9 points inclusive); performance of increased seismic resistance of the PS (over 9 to 10 points inclusive).	Specified when ordering. In the absence of a requirement, it is supplied in a non-seismic (C0) version
Installation position	any
Spindle seal	Stuffing box, with packing rings of thermally expanded graphite
Type of management	manual
Connection to the pipeline	coupling (G, Rc, K); - flange GOST 33259 versions A, B, C, D, E, F, J, K, L, M; Flanged GOST 9033, ANSI/ASME B16.5; flanged with counter flanges; for welding into the joint; coupling for welding.	Specified when ordering. For coupling valves, the size of the connecting thread is indicated, for flanged valves - the flange design, the standard for the mating flanges. For versions for welding and counter flanges, it is possible to perform cutting for a specific pipe. In the absence of requirements for the execution of flanges or cutting for a specific pipe, it is supplied according to the technical documentation of RTMT LLC
Type of coating	Factory anti-corrosion coating, coating according to special requirements	Specified when ordering. In the absence of a requirement, it is supplied with a factory anti-corrosion coating
Average service life	20 years

Shut–off valve (valve) is a pipe fitting used to block the flow of the working medium in domestic and industrial systems. The device has a simple design consisting of a robust housing that overlaps the passage section of the shutter and the flywheel. The special design and excellent characteristics provided shut-off valves with a wide scope of operation and demand for solving various engineering tasks.

Application and principle of operation of the valve

The shut-off steel valve regulates the flow movement by moving the gate in a vertical plane. In the closing mode, the disk is lowered onto the saddle, blocking the flow of the working medium, and when opened, it rises up. The valves are installed in one direction, according to the marking on the housing. The mechanisms manufactured by RTMT are perfectly suitable for pipelines with a diameter of 15-25 mm with a working pressure of 1.6-27 Mpa. They are able to provide an effective overlap of any liquid or gaseous flows, which is why they are often used in heating systems, water and gas mains, as well as in oil, chemical, metallurgical and other industries.

Range of shut-off valves

The offer of RTMT LLC includes a large selection of valves for use in different modes and conditions. The final price for shut-off valves is formed taking into account the features of their design and characteristics. The types of fittings available to us differ from each other:

the shape of the body is straight–flow or angular;
the type of shutter is conical or poppet;
the mounting method is threaded, welding, flanged.

Those who wish to buy a shut-off valve manufactured by RTMT LLC are recommended to order a wholesale batch of fittings over the phone or by sending an application for info@rtmt.ru .
